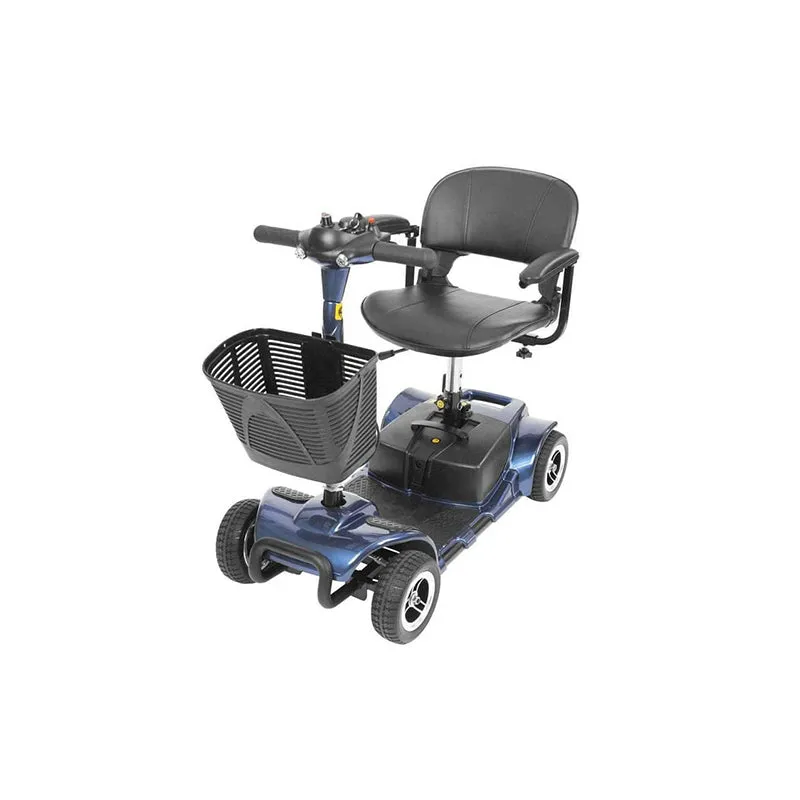

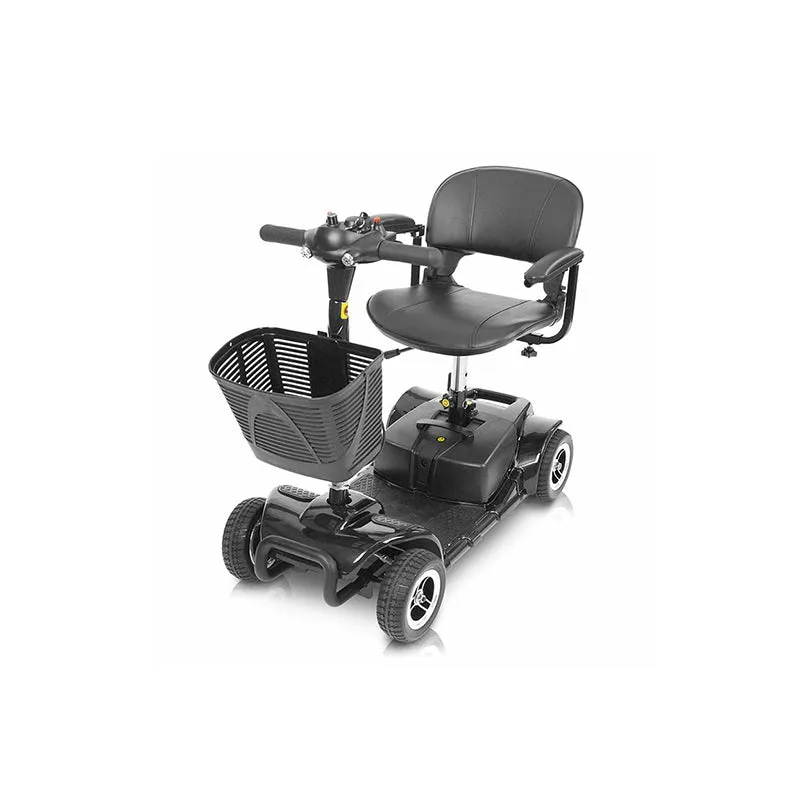

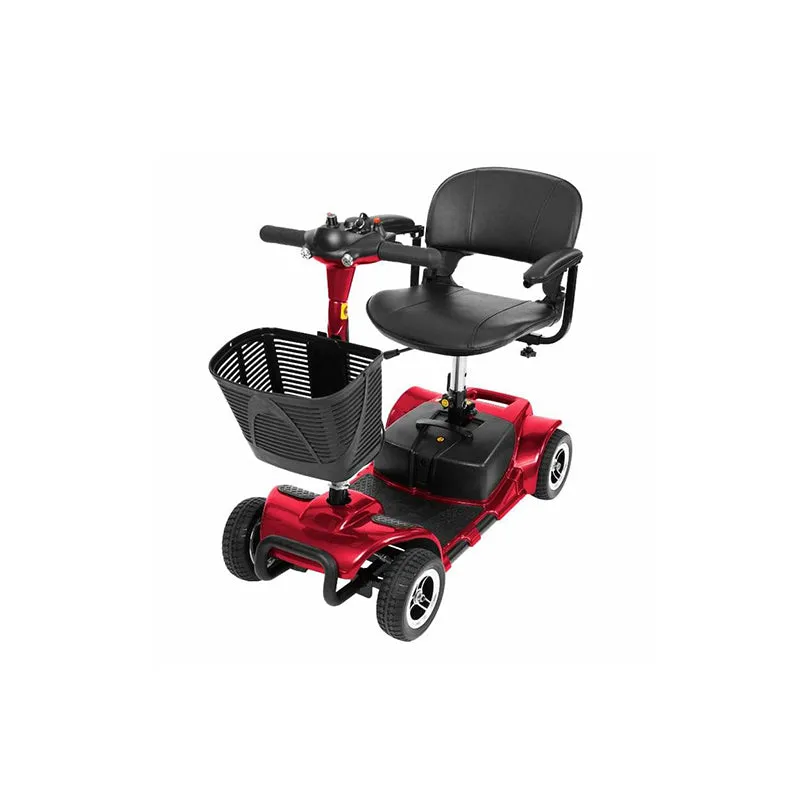

Vive Health 4 Wheel Mobility Scooter

Resting on a stable base of four, flat-free, tires to easily navigate over smooth surfaces and up and down inclines of six degrees or less

Disassembling into four pieces, the mobility scooter easily fits in most vehicles for on the go use

Easy to board and exit, the swivel seat & contoured backrest are height adjustable & covered with a supple black vinyl for comfort & easy cleaning

Select the maximum speed desired with the speed adjustment dial, providing greater safety and control

Included charger allows you to charge the standard 12V/12AH batteries on the scooter or easily remove the battery pack for off-board charging

Each scooter includes a removable front tiller basket, a high-intensity LED headlight and horn for added safety

Features

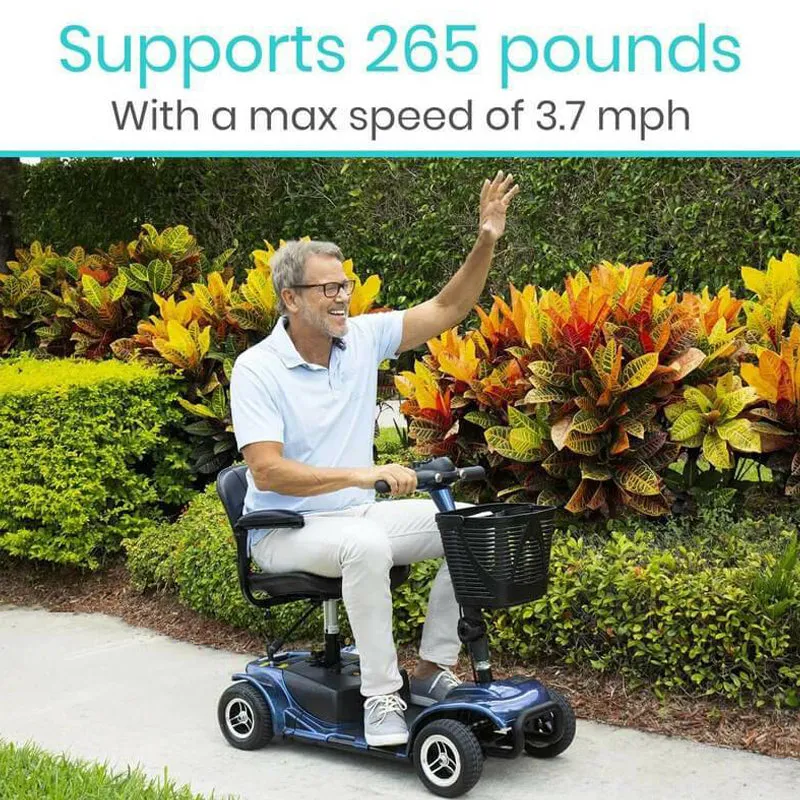

• Supports 265 Pounds: With a max speed of 3.7 mph

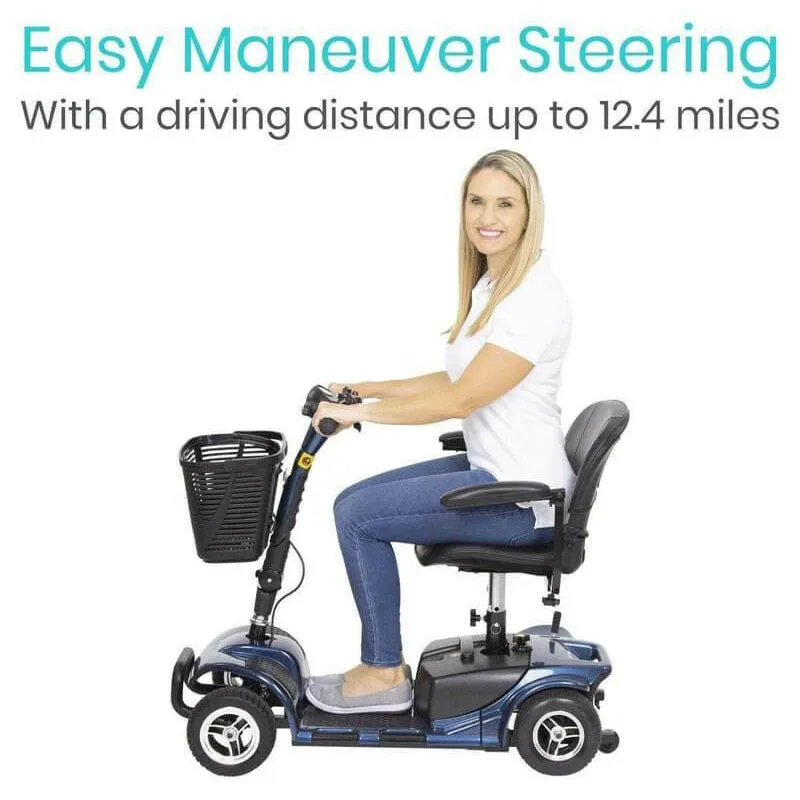

• Easy Maneuver Steering: With a driving distance up to 124 miles

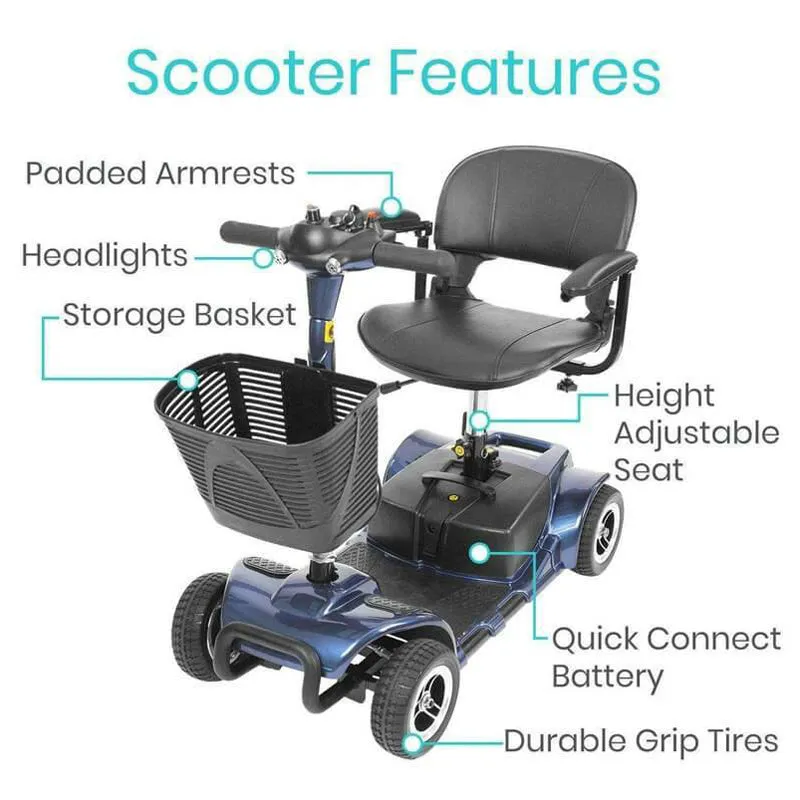

• Scooter Features: Padded armrests, headlights, storage basket, height adjustable seat, quick connect battery, durable grip tires

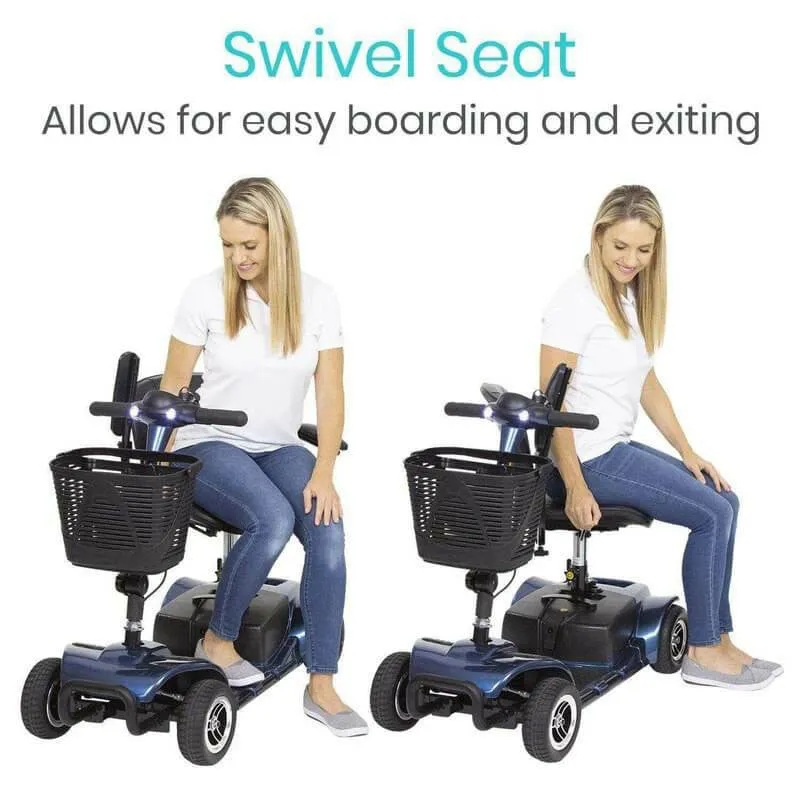

• Swivel Seat: Allows for easy boarding and exiting

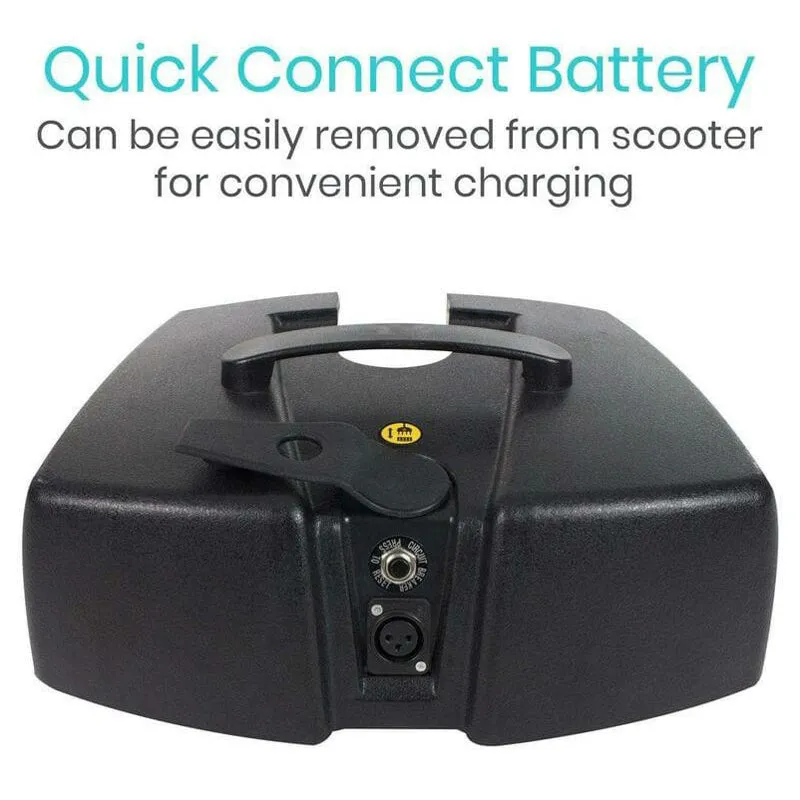

• Quick Connect Battery: Can be easily removed from scooter for convenient charging

General Specification

• Front Tires: 8"
• Rear Tires: 8"
• Maximum Speed: Up to 3.7 mph
• Ground Clearance: 1.57"
• Turning Radius: 4.3'
• Overall Length: 40"
• Overall Width of Base: 19.68"
• Seat-to-Ground Height Range: 18.5"-21.5"
• Seat Dimensions: 17" x 14.5"
• Seat Material: Black vinyl, molded composite base
• Total Weight: 88.2 lbs
• Weight of Heaviest Piece: 29 lbs. (Rear base)
• Battery Requirements: (2)12AH
• Maximum Range Per Charge: Up to 12.4 miles
• Battery Charger: Off-board charger, 2amp
• Brakes: Electronic, regenerative and electromechanical
• Motor: 24-volt DC motor, sealed mini-transaxle
• Maximum Weight Capacity: 265 lbs

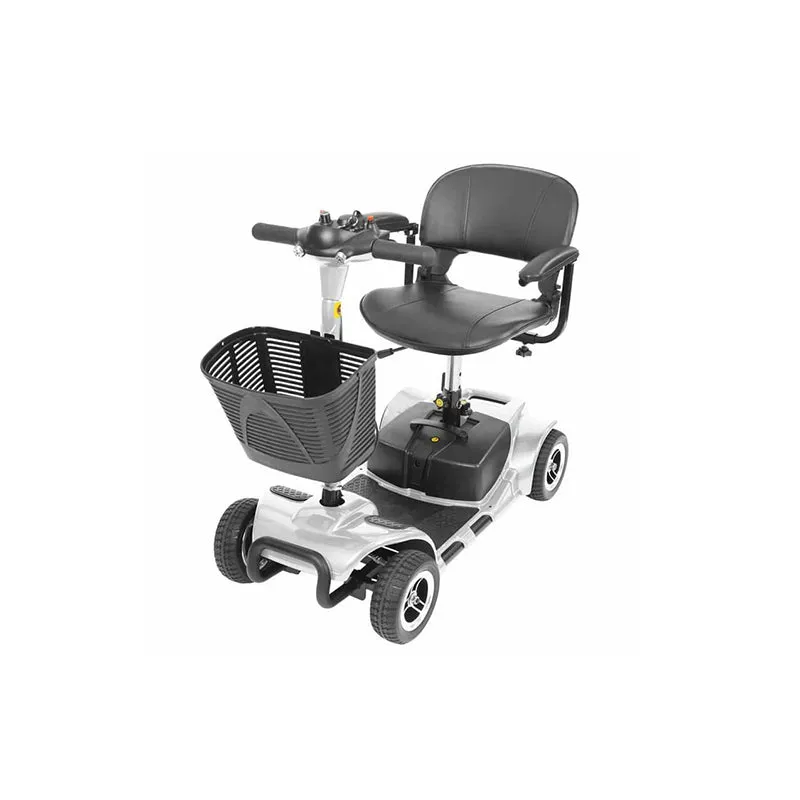

• Standard Body Colors: Blue, Silver

Includes

• Vive 4-Wheeled Mobility Scooter
• Off-Board Battery Charger

Guarantee Policy

• Frame - 5 years
• Electrical - 6 months
• Batteries - 6 months
• Horn - 6 months
• Controller - 6 months
• Handles - 90 days
• Charger - 90 days
• Battery case - 60 days
• Wheels - none / on arrival 30 days
• Screws / Bolts / Nuts - None / on arrival 30 days
• Cushions / Seats - None / on arrival 30 days
• Paint / Panels - None / on arrival 30 days
• Keys - None / on arrival 30 days

Return Policy

• 30 day return window from date of purchase
• All returns MUST have Return Authorization to be credited

Specifications

• Brand: Vive Health
• Product Type: Mobility Scooter
• Top Speed: 3.70 mph
• Maximum Drive Range Per Charge: 12.4 Miles
• Heaviest Piece: 29 lbs
• Weight Capacity: 265 lbs
• Total Weight: 88.2 lbs
